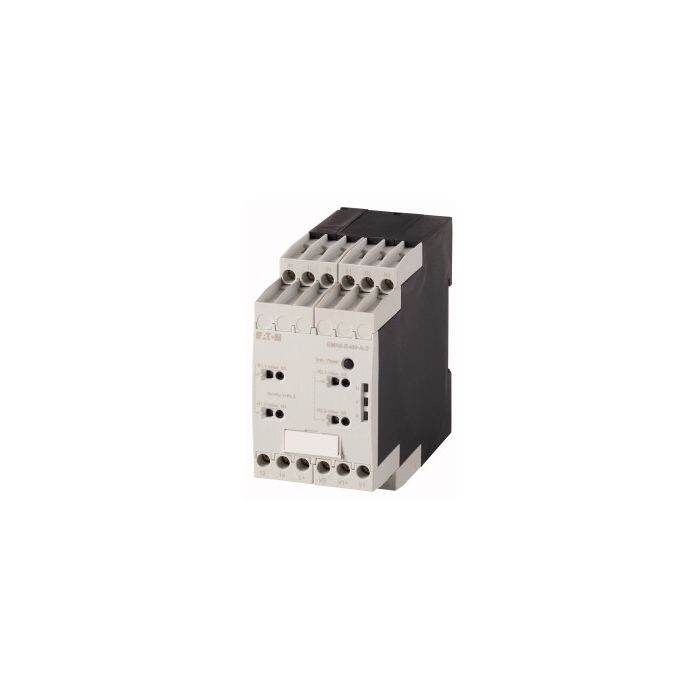

Eaton Moeller® series EMR6 Insulation monitoring relay

Article No.:
184774
Part No.:
EMR6-R400-A-2
Brand:
Insulation monitoring relays, 0 - 400 V AC, 0 - 600 V DC, 1 - 100 k?
Availability:
Forward delivery 4-6 weeks
More Information
Part No. EMR6-R400-A-2
UOM EA
Weight (KG) 0.24
Dimension Width (mm) 45.00
Dimension Height (mm) 85.60
Dimension Depth (mm) 107.00
Description
Insulation monitoring relays, Product range: EMR Measuring and monitoring relays, Status indication via LEDs, Open-circuit principle, Test or reset with button on device or with control input, Configurable fault memory/memory function, Configurable non-volatile fault memory, Wire break detection, Monitoring of: Insulation resistance in non-earthed AC supply systems (three-phase, four-phase systems), insulation resistance in non-earthed DC supply systems (three-phase systems), adjustable sensitivity range: 1 - 100 k?, 2 - 200 k?, Supply voltage: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, Rated operating voltage for the supply system being monitored: 0 - 400 V AC, 0 - 600 V DC, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC/EN 60255-6,
Resources / Data Sheets
