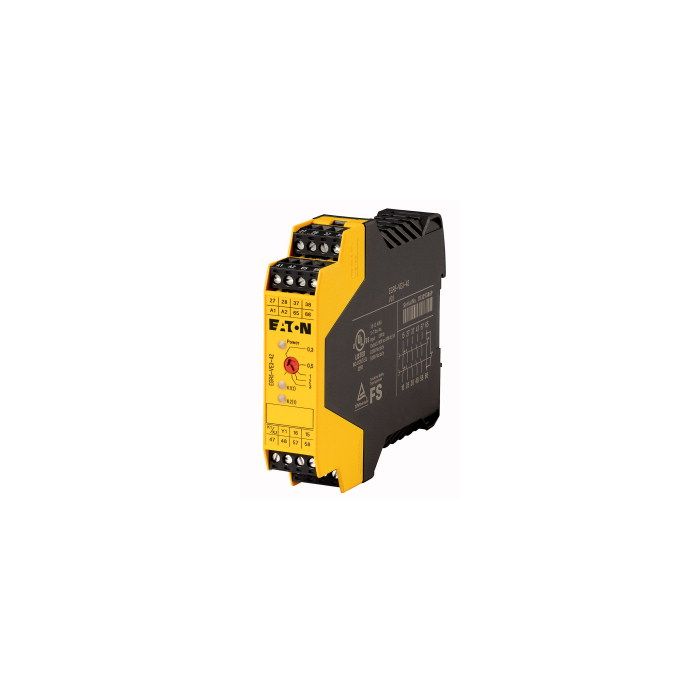

Eaton ESR5 Contact expansion module
Article No.:
118706
Part No.:
ESR5-VE3-42
Brand:
Contact expansion module, 24VDC/AC, 4 enabling paths off-delayed
Availability:
Forward delivery 4-6 weeks
Part No. | ESR5-VE3-42 |
---|---|
UOM | EA |
Weight (KG) | 0.17 |
---|---|
Dimension Width (mm) | 22.50 |
Dimension Height (mm) | 99.00 |
Dimension Depth (mm) | 114.50 |
Description
Contact expansion module, off-delayed, for extending the contacts on safety logic modules and timing function, supply voltage 24VDC, 4 Enable current paths (IEC/EN 60204 Stop category 1) - the base unit determines the maximum safety category according to IEC 61508 and IEC 60204, 2 signal current paths, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 3 according to EN 954-1 / PL d according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 according to IEC61508, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation reinforced insulation and 6 kV between input current circuit/N/C contacts and enable contacts.
