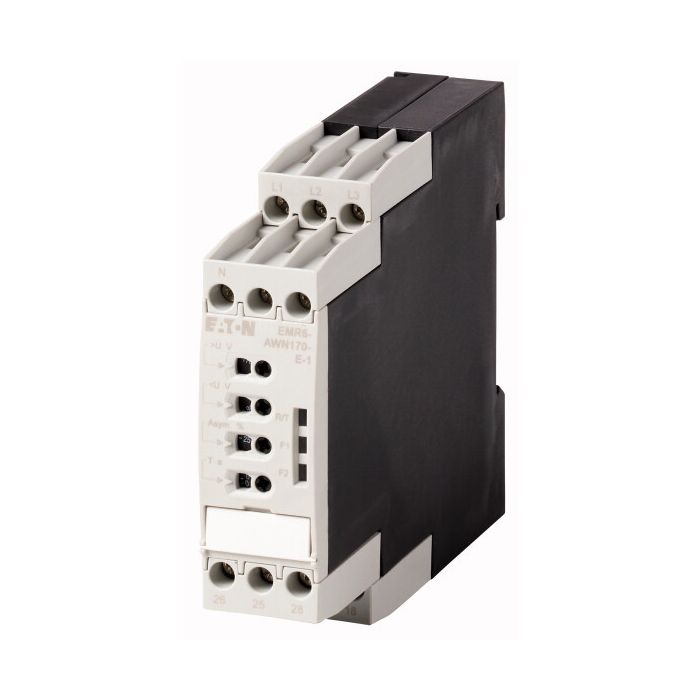

Eaton Moeller® series EMR6 Phase monitoring relay

Article No.:
184768
Part No.:
EMR6-AWN170-E-1
Brand:
Phase monitoring relays, Multi-functional, 90 - 170 V AC, 50/60 Hz
Availability:
Forward delivery 4-6 weeks
More Information
Part No. EMR6-AWN170-E-1
UOM EA
Weight (KG) 0.16
Dimension Width (mm) 22.50
Dimension Height (mm) 85.60
Dimension Depth (mm) 103.70
Description
Phase monitoring relays, Product range: EMR Measuring and monitoring relays, Multi-functional, Power supply from the measuring circuit, On-delay/off-delay: none = 0 or adjustable between 0.1 - 30 s, Imbalance threshold values adjustable 2 - 25 % of mean value of phase voltages, Automatic phase sequence correction (can be disabled), Suitable for single-phase networks as well., Monitoring voltage per phase: UN= 90 - 170 V AC, 50/60 Hz V AC, Monitoring of: Phase sequence (can be deactivated), Phase failure, Overvoltage, Undervoltage, Imbalance, Neutral cable break, Supply voltage: 90 - 170 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC, UL, CSA, CCC, GL
