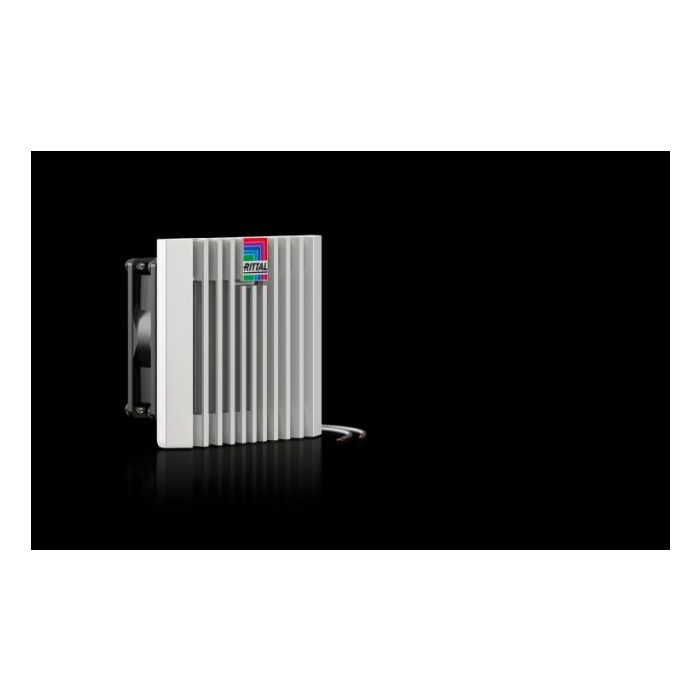

Blue e+ fan-and-filter unit
Part No.:
3237724
Brand:
| Design | Wall-mounted |
| Product description | Fan-and-flter units with diagonal fan technology have superiorv pressure stability and ensure a more constant air throughput. The diagonal direction of outfow ensures more even heat dissipation from the enclosure. |
| Benefts | Easy flter changes, thanks to a new opening mechanism on the louvred grille Faster installation on the enclosure with optimised detent hooks Diagonal fan technology achieves more even and constant ventilation of the enclosure, thanks to improved pressure stability Tool-free assembly |
| Material | Plastic |
| Supply includes | Complete unit ready to install, including chopped-fbre flter mat |
| Fan | Axial, DC motor |
| Air throughput, unimpeded airfow (with chopped-fbre flter) | With DC: 20 m³/h |
| Note | With the fan-and-flter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-flter units, a screwless spring terminal is used |
| ETIM 9 , ETIM 8 | EC000320 , EC000320 |
| ECLASS 8.0 | 27180716 |
Availability:
Forward delivery 5-7 weeks
