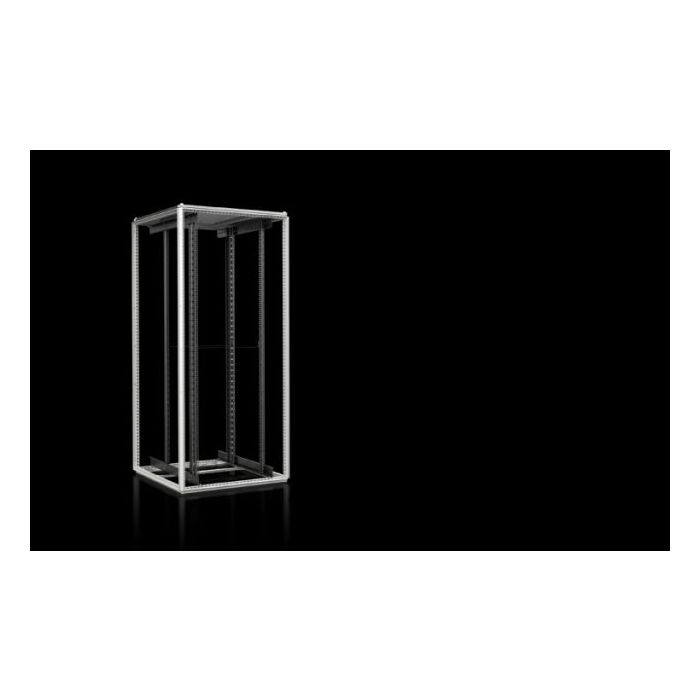

VX IT Open
Part No.:
1182097
Brand:
VX IT Open
VX IT standard version, without front and rear door.
Usable either as an open 482.6 mm (19") frame in a secure environment or as the basis for fast configurations in the Rittal RiPanel
configuration system using existing accessories (such as doors and side panels) from the Rittal modular range.
| Design | VX enclosure frame with roof plate, without front and rear door, Vented, without side panels. |
| Roof Design | Standard , multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate |
| Base Design | Open |
| Material ,Surface finish & Color | Sheet steel , Enclosure frame: Dipcoat-primed ,Interior installation: RAL 9005, Enclosure frame and roof: RAL 7035 |
| Supply includes | Enclosure frame , Mounting angles, 482.6 mm (19"), Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose), Not required for variants without a cut-out. 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose), 25 multi-tooth screws, conductive (supplied loose). IPPC pallet. Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate |
| Weight | Net weight : 73 kg , Gross weight :- 76 kg |
| Load capacity | 15,000 N |
| Max. load capacity (static) per enclosure to UL 2416 | 12,000 N |
| ETIM 8 , 9 | EC002499 |
| ECLASS 8.0 | 27180207 |
Availability:
Forward delivery 5-7 weeks
