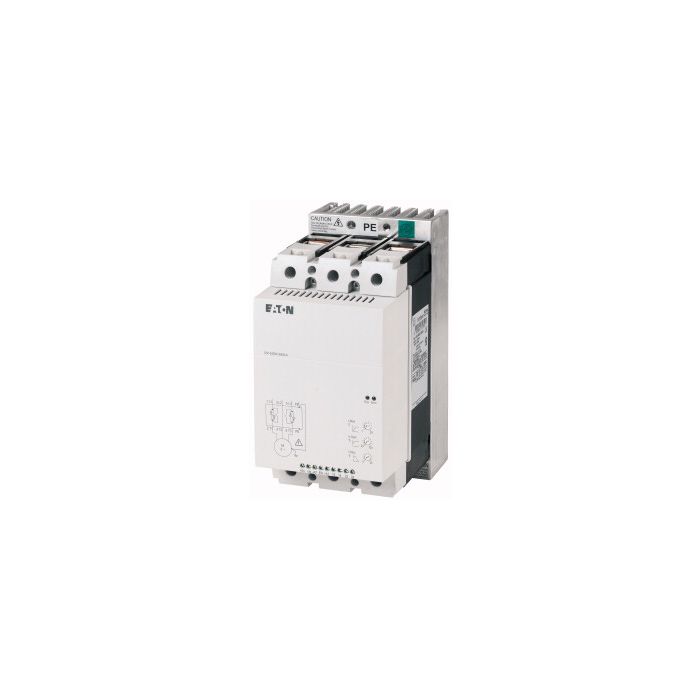

Soft starter, 3p, 135A, 200-480VAC, us=110/230VAC

Article No.:
134939
Part No.:
DS7-342SX135N0-N
Brand:
Soft starter, 135 A, 200 - 480 V AC, Us= 110 - 230 V AC, Frame size FS4
Availability:
Forward delivery 4-6 weeks
More Information
Part No. DS7-342SX135N0-N
UOM EA
Weight (KG) 3.70
Dimension Width (mm) 108.00
Dimension Height (mm) 215.00
Dimension Depth (mm) 178.00
Description
Soft starter, Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 200 - 480 V AC, Supply voltage: Us= 110 - 230 V AC, Control voltage: UC= 110 - 230 V AC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 75 kW, at 460 V, 60 Hz: P= 100 HP, Rated operational current AC-53: Ie= 135 A, Rated operational voltage: Ue= 200 V, 230 V, 400 V, 480 V, Connection to SmartWire-DT: no, Frame size: FS4, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14
