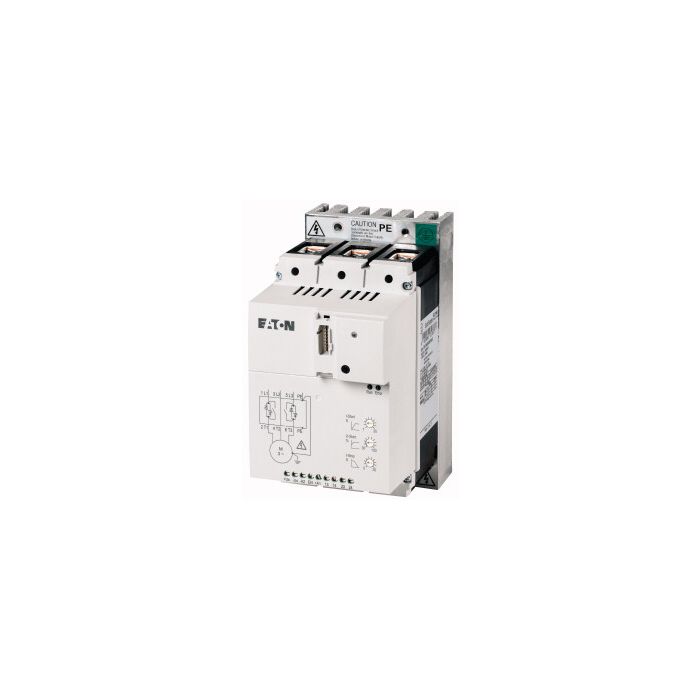

Eaton DS7 Soft starter

Article No.:
134953
Part No.:
DS7-34DSX055N0-D
Brand:
Soft starter, 55 A, 200 - 480 V AC, 24 V DC, Frame size: FS3, Communication Interfaces: SmartWire-DT
Availability:
Forward delivery 4-6 weeks
More Information
Part No. DS7-34DSX055N0-D
UOM EA
Weight (KG) 1.80
Dimension Width (mm) 93.00
Dimension Height (mm) 175.00
Dimension Depth (mm) 156.00
Description
Soft starter, Product range: SmartWire-DT slave, Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 200 - 480 V AC, Supply voltage: Us= 24 V DC, Control voltage: UC= 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 30 kW, at 460 V, 60 Hz: P= 40 HP, Rated operational current AC-53: Ie= 55 A, Rated operational voltage: Ue= 200 V, 230 V, 400 V, 480 V, Connection to SmartWire-DT: yes, Frame size: FS3, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14
