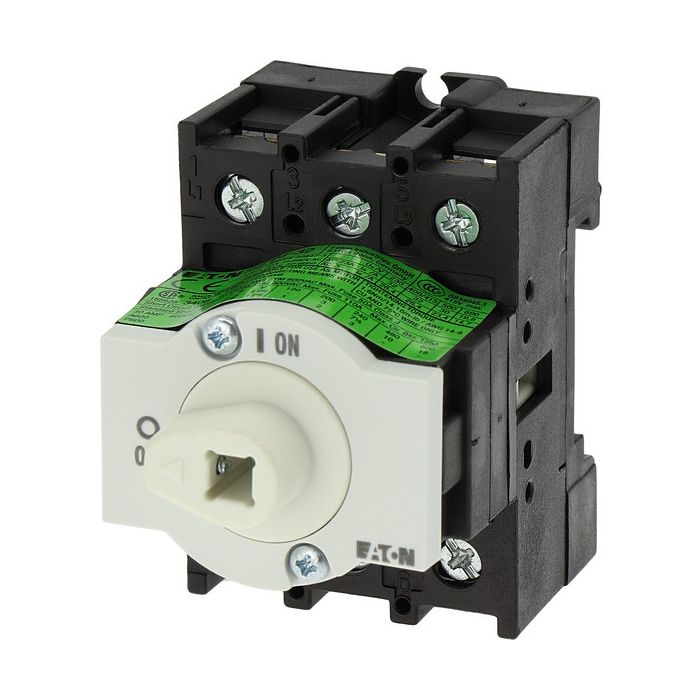

MAIN SWITCH, 3 POLE, 32 A, EMERGENCY-STOP FUNCTION, LOCKABLE IN THE 0 (OFF) POSITION, REAR MOUNTING, WITH 400 MM METAL SHAFT. P1-32/M4/SVB
Article No.:
172865
Part No.:
P1-32/M4/SVB
Brand:
Main switch, P1, 32 A, rear mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position, With metal shaft for a control panel depth of 400 mm
Availability:
Forward delivery 4-6 weeks
Part No. | P1-32/M4/SVB |
---|---|
UOM | EA |
Weight (KG) | 0.32 |
---|
Description
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: P1, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: With metal shaft for a control panel depth of 400 mm, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Resources / Data Sheets
