Eaton Moeller series IZMX/INX - ACB
Article No.:
184110
Part No.:
IZMX-UVR48DC-1
Brand:

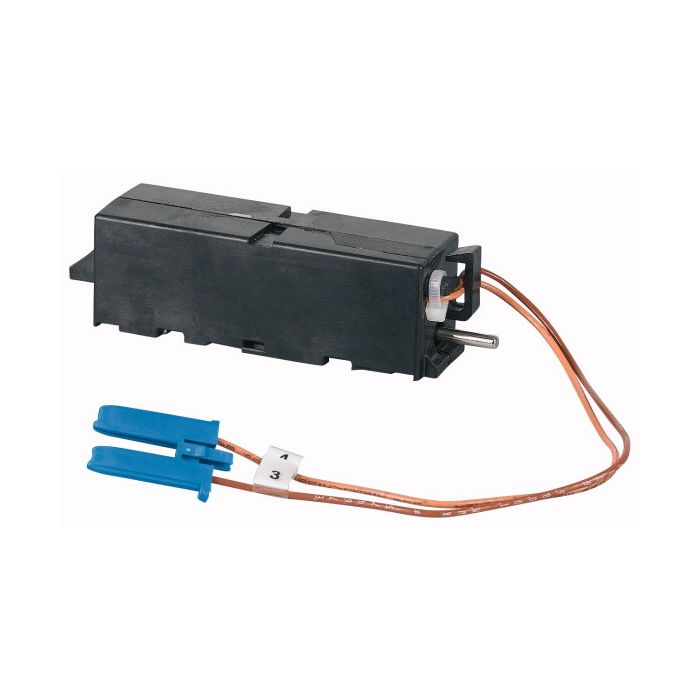

Undervoltage release 48 VDC
Availability:
Forward delivery 4-6 weeks
Part No. | IZMX-UVR48DC-1 |
---|---|
UOM | EA |
Weight (KG) | 0.09 |
---|
Description
Accessories, Undervoltage release, Cannot be combined with a second shunt release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 48 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.089 A, max. pick-up current (35ms) In 16 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 850 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
