Eaton Moeller series IZMX/INX - ACB

Name: Eaton Moeller series IZMX/INX - ACB
SKU: 184108
Price: 405.75 AED
Availability: InStock

Article No.:

184108

Part No.:

IZMX-UVR24DC-1

Brand:

Undervoltage release 24 VDC

Availability:

Forward delivery 5-7 weeks

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information

Part No.	IZMX-UVR24DC-1
UOM	EA

Weight (KG)	0.09

Description

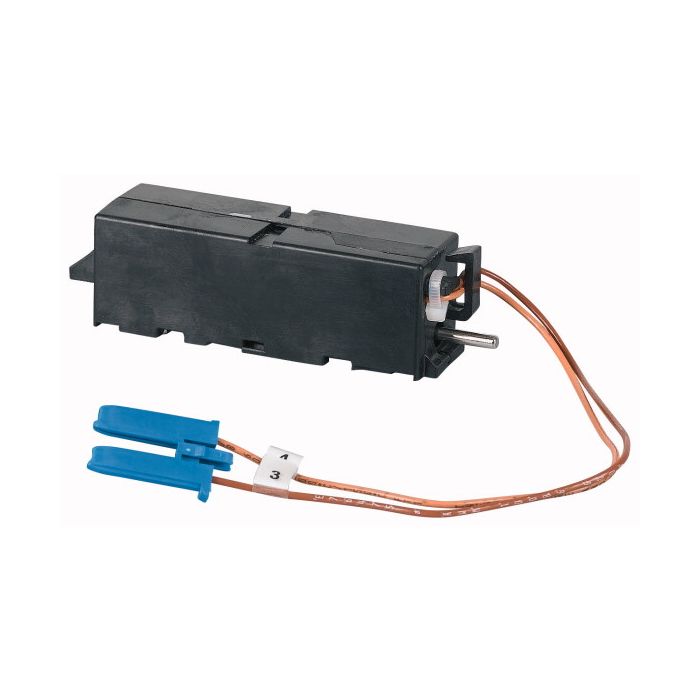

Accessories, Undervoltage release, Cannot be combined with a second shunt release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 24 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.18 A, max. pick-up current (35ms) In 19 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 500 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...

Resources / Data Sheets

Data Sheet
