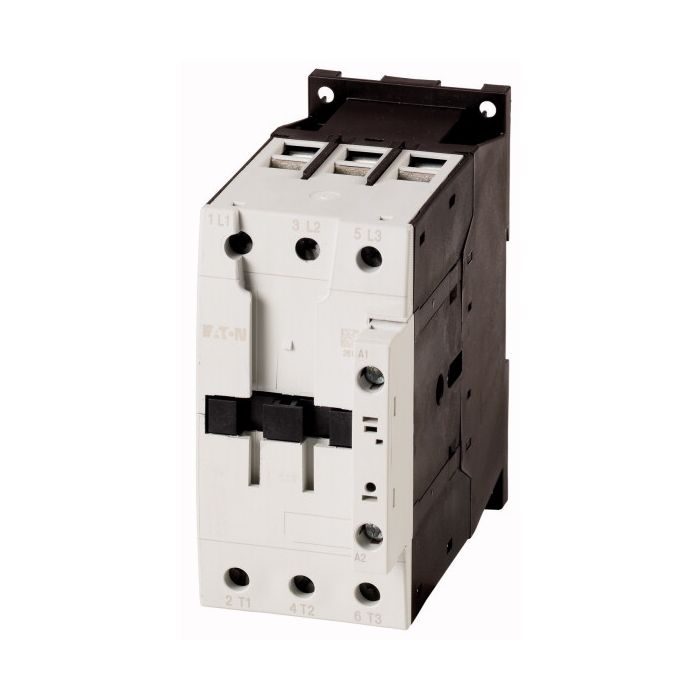

Eaton Moeller® series DILM Contactor
Article No.:
277896
Part No.:
DILM65(400V50HZ,440V60HZ)
Brand:
Contactor, 3 pole, 380 V 400 V 30 kW, 400 V 50 Hz, 440 V 60 Hz, AC operation, Screw terminals
Availability:
Forward delivery 4-6 weeks
Part No. | DILM65(400V50HZ,440V60HZ) |
---|---|
UOM | EA |
Weight (KG) | 0.87 |
---|
Description
Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 65 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 98 A, enclosed: Ith= 72 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 200 A, enclosed: Ith= 180 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 20 kW, 380 V 400 V: P= 30 kW, 660 V 690 V: P= 35 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 7 kW, 380 V 400 V: P= 12 kW, 660 V 690 V: P= 17 kW, Can be combined with auxiliary contact: DILM150-XHI(V).., DILM1000-XHI(V).., Instructions: Contacts to EN 50?012., Voltage AC/DC: AC operation
Resources / Data Sheets
Related Products
-

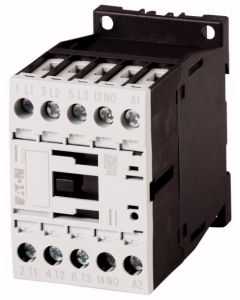

Part No.: U-PKZ0(24V50HZ)Undervoltage release, 24V50HzUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DILM150-XHI20AUXILIARY CONTACT MODULE, 2N/O. DILM150-XHI20UOM: EAAvailability: In stockPart No.: Z-SCH230/40-22xPole Installation ContactorsUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DILM115(RAC240)Contactor, 3 pole, 380 V 400 V 55 kW, RAC 240: 190 - 240 V 50/60 Hz, AC operation, Screw terminals DILM115(RAC240)UOM: EAAvailability:Forward delivery 4-6 weeksPart No.: CE15BNS3ABIEC OPEN 3P CONT SZ B 120V COIL - FOR REPLACEMENT ONLYUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DILM7-10(110V50/60HZ)Eaton Moeller® series DILM ContactorUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DILM17-10(110V50HZ,120V60HZ)Contactor, 3p+1N/O, 7.5kW/400V/AC3. DILM17-10(110V50HZ,120V60HZ)UOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DILM38-01(230V50/60HZ)Contactor, 3p+1N/C, 18.5kW/400V/AC3UOM: EAAvailability:Forward delivery 4-6 weeksPart No.: FAZ-XHIN11Auxiliary contact, for FAZ, PKNM, 1N/O+1N/C, 0.5HPUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: N-P3ZEaton rotary disconnect neutral conductorUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: P3-100/EA/SVB/NEaton Moeller® series P3 Main switchUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DILM9-10(110V50/60HZ)Contactor, 3p+1N/O, 4kW/400V/AC3 . DILM9-10(110V50/60HZ)UOM: EAAvailability:Forward delivery 4-6 weeks
