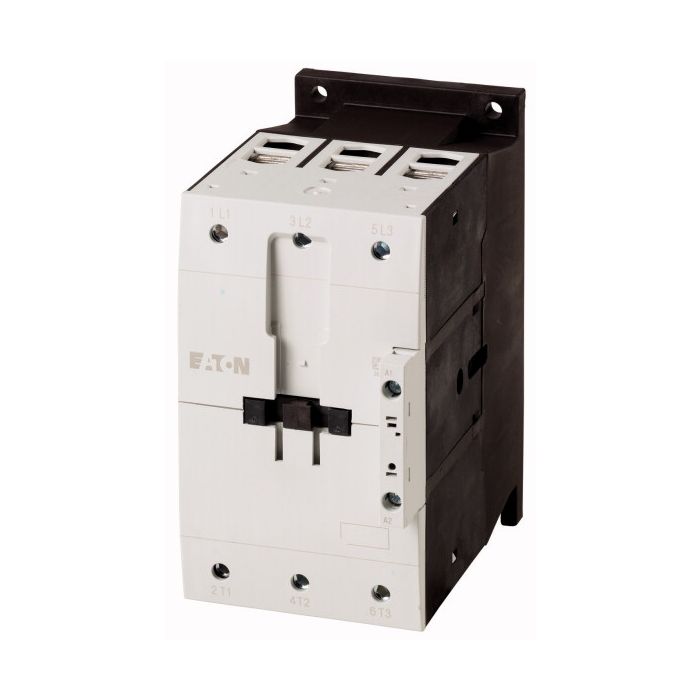

Contactor, 3 pole, 380 V 400 V 45 kW, 380 V 50 Hz, 440 V 60 Hz, AC operation, Screw terminals DILM95(380V50HZ,440V60HZ)
Article No.:
239481
Part No.:
DILM95(380V50HZ,440V60HZ)
Brand:
Contactor, 3 pole, 380 V 400 V 45 kW, 380 V 50 Hz, 440 V 60 Hz, AC operation, Screw terminals
Availability:
Forward delivery 4-6 weeks
Part No. | DILM95(380V50HZ,440V60HZ) |
---|---|
UOM | EA |
Weight (KG) | 2.18 |
---|
Description
Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 95 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 130 A, enclosed: Ith= 100 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 275 A, enclosed: Ith= 250 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 30 kW, 380 V 400 V: P= 45 kW, 660 V 690 V: P= 75 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 16 kW, 380 V 400 V: P= 26 kW, 660 V 690 V: P= 35 kW, Can be combined with auxiliary contact: DILM150-XHI(V).., DILM1000-XHI(V).., Instructions: Contacts to EN 50?012., Voltage AC/DC: AC operation
Resources / Data Sheets
