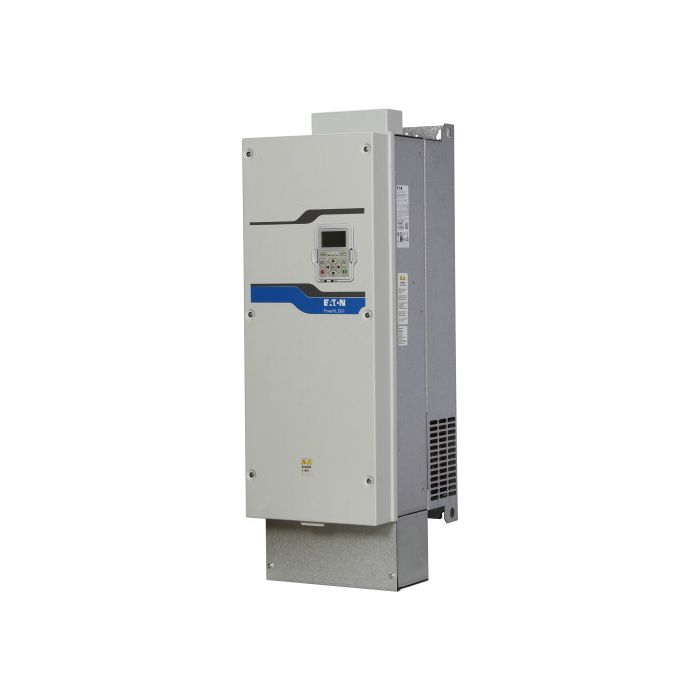

Eaton DG1 Variable frequency drive
Article No.:
9702-5002-00P
Part No.:
DG1-34105FB-C21C
Brand:
Variable frequency drive, 400 V AC, 3-phase, 105 A, 55 kW, IP21/NEMA1, Brake chopper, DC link choke
Availability:
Forward delivery 4-6 weeks
Part No. | DG1-34105FB-C21C |
---|---|
UOM | EA |
Weight (KG) | 75.90 |
---|
Description
Variable frequency drive, Part group reference (e.g. DIL): DG1, Rated operational voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, 500 V AC, 3-phase, Output voltage with Ve: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, 500 V AC, 3-phase, Mains voltage (50/60Hz): ULN = 380 (-15%) - 500 (+10%) V, Rated operational current At 150% overload: Ie = 105 A, Note: Rated operational current for a switching frequency of 1 - 10 kHz and an ambient temperature of +50 °C for a 150% overload and +40 °C for a 110% overload, Rated operational current At 110% overload: Ie = 140 A, Note: Overload cycle for 60 s every 600 s, Assigned motor rating Note: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor rating 150 % Overload: P = 55 kW, 110 % Overload: P = 75 kW, 150 % Overload: IM = 99 A, 110 % Overload: IM = 134 A, Assigned motor rating Note: at 500 V, 50 Hz, Assigned motor rating 150 % Overload: P = 55 kW, 110 % Overload: P = 90 kW, 150 % Overload: IM = 79 A, 110 % Overload: IM = 129 A, Assigned motor rating Note: at 480 V, 60 Hz, Assigned motor rating 150 % Overload: P = 75 HP, 110 % Overload: P = 100 HP, Assigned motor rating 150 % Overload: IM = 96 A, 110 % Overload: IM = 124 A, Degree of Protection: IP21/NEMA1, Interface/field bus (built-in): Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP, Fieldbus connection (optional): PROFIBUS, CANopen®, DeviceNet, SmartWire-DT, Fitted with: Radio interference suppression filter, Additional PCB protection, Multi-line graphic display, Brake chopper, DC link choke, Frame size: FS5, Standards: Specification for general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5
Resources / Data Sheets
Related Products
-

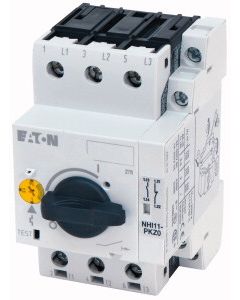

Part No.: PKZM0-1PKZM0-1 - Motor-protective circuit-breaker, 3p, Ir=0.63-1A, screw connectionUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: PKZM0-2,5/NHI11-GVPEaton Moeller® series PKZM0 Motor-protective circuit-breakerUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: PKZM0-4-SC/NHI-E-10-C-GVPEaton Moeller® series PKZM0 Motor-protective circuit-breakerUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DA1-324D3FB-B6SCEaton DA1 Variable frequency driveUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DA1-352D1NB-B66CEaton DA1 Variable frequency driveUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DA1-353D1NB-B66CEaton DA1 Variable frequency driveUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: PKZM0-1,6/NHI11Eaton Moeller® series PKZM0 Motor-protective circuit-breakerUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: DS7-342SX160N0-NSoft starter, 3p, 160A, 200-480VAC, us=110/230VACUOM: EAAvailability: In stockPart No.: N-P1ENeutral conductor, 4th pole, N for P1E . N-P1EUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: PKZM01-4Eaton Moeller® series PKZM01 Motor-protective circuit-breakerUOM: EAAvailability:Forward delivery 4-6 weeksPart No.: PKZM0-XMR72Eaton Moeller® series PKZM0 Motor-protective circuit-breakerUOM: EAAvailability:Forward delivery 4-6 weeks
