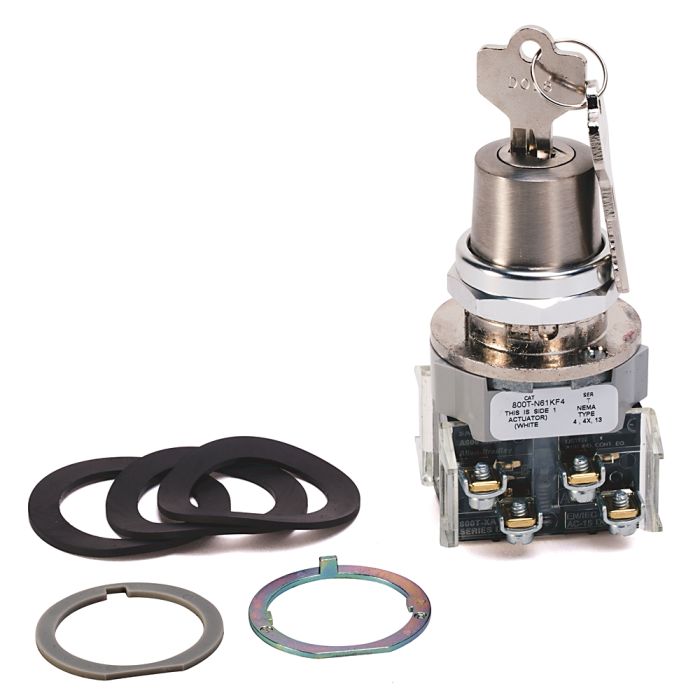

30mm Selector Switch 800T PB
Part No.:
800T-N61KF4C
Brand:
| Product Type | 30mm Selector Switch |
|---|
| Number of switch positions | 4 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 200000 |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Cylinder lock selector switch |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | 4-NO 4-NC standard contacts |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Terminations with finger safe covers | False |
|---|---|
| Operator construction/material | Metal |
| Operator cap type | Key-operated |
| Operator cam code | KF4 |
| Operator lock key code | D018 (standard key) |
| Operator lock key removal position(s) | Lock in all positions |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Availability:
Forward delivery 5-7 weeks
