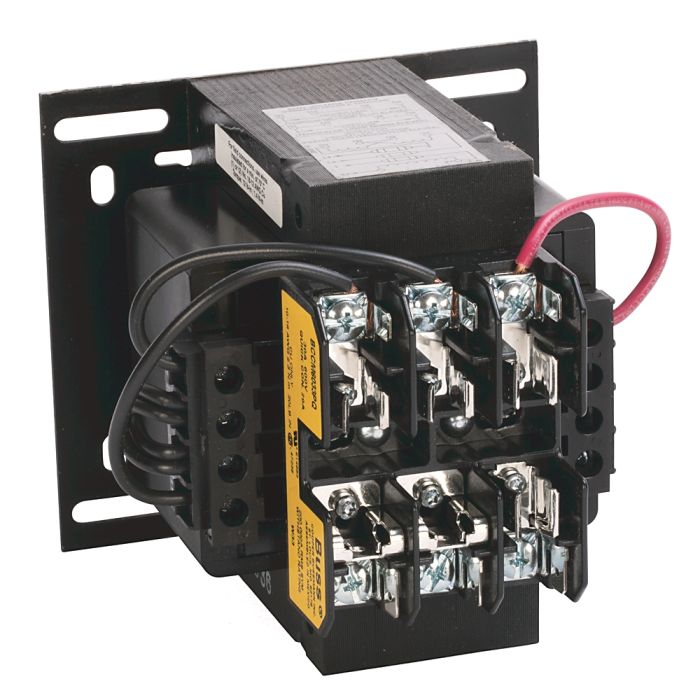

Control Circuit Transformer 1497-E-BASX-0-N
Part No.:
1497-E-BASX-0-N
Brand:
| Continuous VA (XFrmr Rating) | 250 VA |
|---|---|
| PrimaryCode | 240/480V(60Hz), 220/440V(50Hz) |
| SecondaryCode | 110V (50Hz) / 120V (60Hz) |
| Rated apparent power | 250 VA |
|---|---|
| Secondary voltage | 110V-50 Hz/120V-60 Hz |
| Fuse block option | 0 primary-0 sary |
| Secondary fuse size | 3.2A @ 120V (per NEC) |
| Primary voltage | 240/480V-60 Hz/220/440V-50 Hz |
| Factory installed options | No cover/no sary fuse |
| Inrush VA | 781VA @ 95% of rated sary voltage, 40% power factor |
| Primary fuse size | 6A @ 208V (when primary and sary protection is used per NEC) |
| Short-circuit-proof | False |
| Bulk package | Single pack |
|---|---|
| Depth | Without fusing: 4-7/8 in (123.95 mm) |
| Width | Without fusing: 4.5 in (114.30 mm) |
| Height | Without fusing: 3-29/32 in (98.30 mm) |
| Shipping weight, approx | Without top mounted fuse block: 10-2/5 lb (4.72 Kg) |
| Modular version | False |
| Ring core | False |
| Built as energy saving transformer | False |
| Built as safety transformer | False |
| Built as isolating transformer | False |
| Conductor material | Copper |
| Type of insulation material according to IEC 85 | B |
|---|
| Suitable for mounting on PCB | False |
|---|
Availability:
Forward delivery 5-7 weeks
