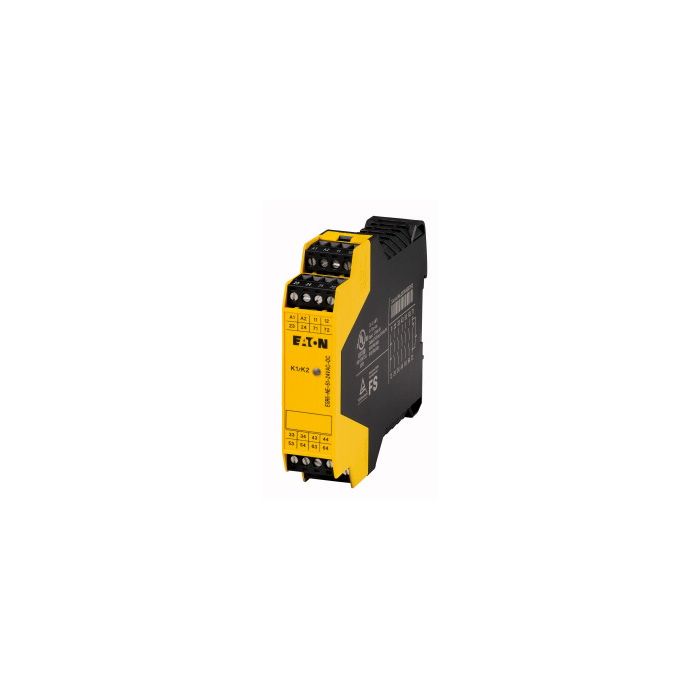

Eaton ESR5 Contact expansion module
Article No.:
118707
Part No.:
ESR5-NE-51-24VAC-DC
Brand:
Contact expansion module, 24VDC/AC, 5 enabling paths
Availability:
Forward delivery 4-6 weeks
Part No. | ESR5-NE-51-24VAC-DC |
---|---|
UOM | EA |
Weight (KG) | 0.21 |
---|---|
Dimension Width (mm) | 22.50 |
Dimension Height (mm) | 99.00 |
Dimension Depth (mm) | 114.50 |
Description
Contact expansion module, non-delayed, to extend the contacts on safety logic modules and time function, supply voltage 24VDC or 24VAC 50/60Hz, 5 Enable current paths (IEC/EN 60204 Stop category 0) - the base unit determines the maximum safety category according to IEC 61508 and IEC 60204, 2 signal current paths, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 4 according to EN 954-1 / PL e according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 according to IEC61508, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation, reinforced insulation and 6 kV between input current circuit and enable contacts)
Resources / Data Sheets
