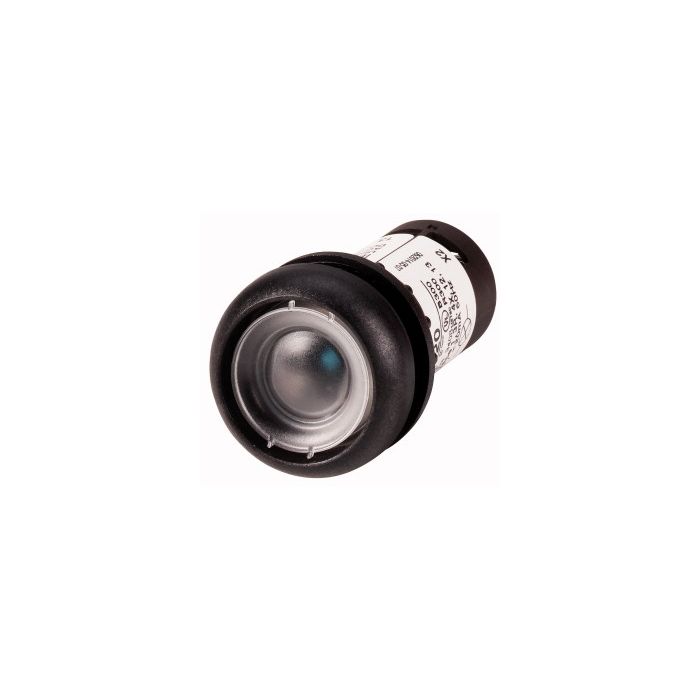

Eaton Moeller® series C22 Illuminated pushbutton actuator
Article No.:
121699
Part No.:
C22S-DRL-XR-K01-24
Brand:
Illuminated pushbutton actuator, Flat, maintained, 1 NC, Screw connection, LED Red, Without button plate, 24 V AC/DC, Bezel: black
Availability:
Forward delivery 4-6 weeks
| Part No. | C22S-DRL-XR-K01-24 |
|---|---|
| UOM | EA |
| Weight (KG) | 0.02 |
|---|---|
| Dimension Width (mm) | 30.00 |
| Dimension Height (mm) | 30.00 |
| Dimension Depth (mm) | 55.00 |
Description
Illuminated pushbutton actuator, RMQ Compact, Complete unit, Design: Flat, maintained, Connection type: Screw connection, Colour LED: Red, button plate: Without button plate, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
