Eaton Moeller® series C22 Pushbutton
Article No.:
121510
Part No.:
C22S-DH-R-X0-K01
Brand:
![](https://ageashop.com/media/amasty/shopby/option_images/slider/Eaton.png)

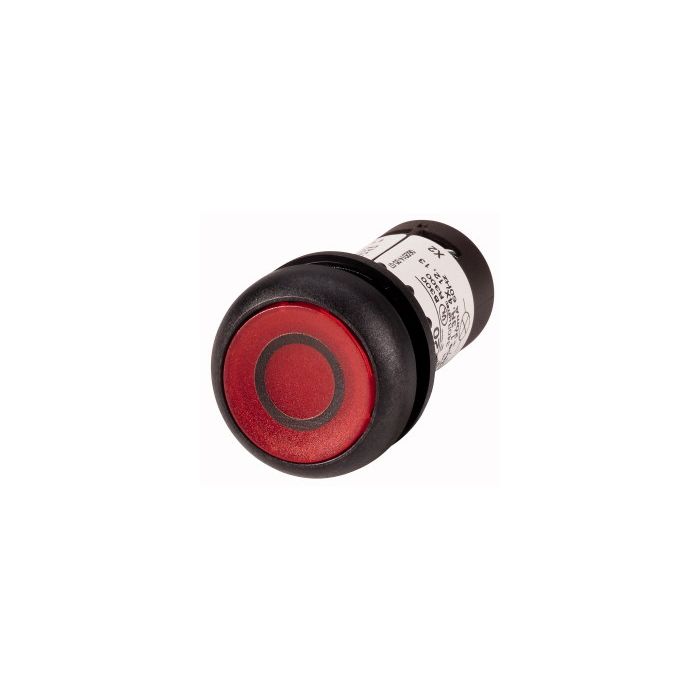

Pushbutton, Extended, momentary, 1 NC, Screw connection, red, inscribed, Bezel: black
Availability:
Forward delivery 4-6 weeks
Part No. | C22S-DH-R-X0-K01 |
---|---|
UOM | EA |
Weight (KG) | 0.02 |
---|---|
Dimension Width (mm) | 30.00 |
Dimension Height (mm) | 30.00 |
Dimension Depth (mm) | 61.00 |
Description
Pushbutton, RMQ Compact, Complete unit, Design: Extended, momentary, Connection type: Screw connection, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
Resources / Data Sheets
