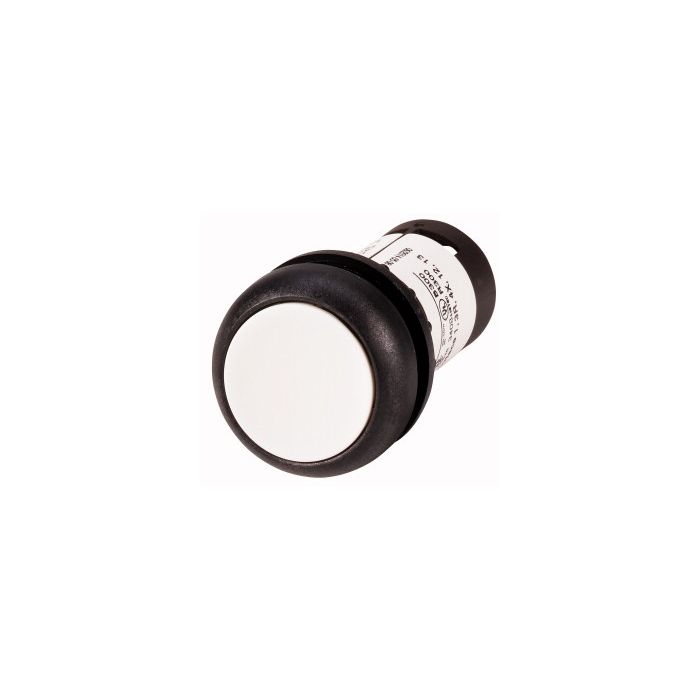

Eaton Moeller® series C22 Pushbutton

Article No.:
121493
Part No.:
C22S-D-W-K11
Brand:
Pushbutton, Flat, momentary, 1 NC, 1 N/O, Screw connection, White, Blank, Bezel: black
Availability:
Forward delivery 4-6 weeks
More Information
Part No. C22S-D-W-K11
UOM EA
Weight (KG) 0.02
Dimension Width (mm) 30.00
Dimension Height (mm) 30.00
Dimension Depth (mm) 55.00
Description
Pushbutton, RMQ Compact, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: White, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
