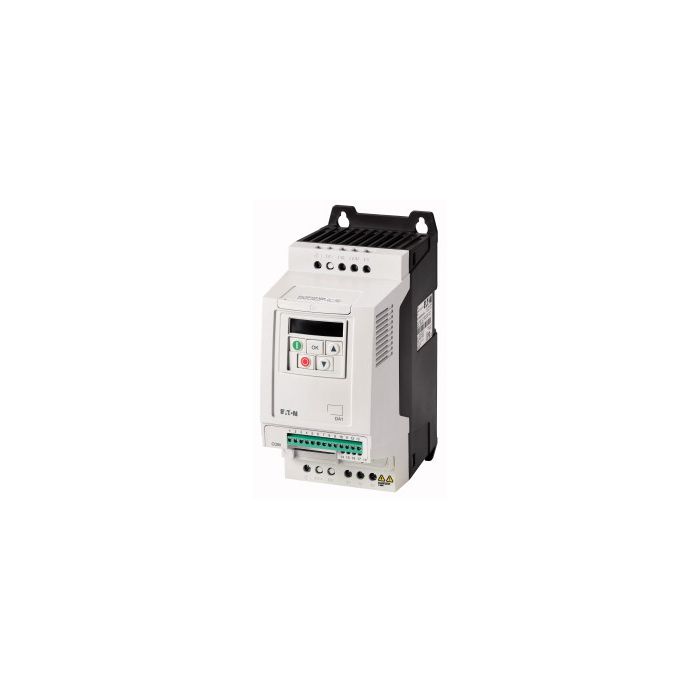

Eaton DA1 Variable frequency drive

Article No.:
177034
Part No.:
DA1-352D1NB-A20C
Brand:
Variable frequency drive, 500 V AC, 3-phase, 2.1 A, 0.75 kW, IP20/NEMA 0, 7-digital display assembly (coated board)
Availability:
Forward delivery 4-6 weeks
More Information
Part No. DA1-352D1NB-A20C
UOM EA
Weight (KG) 1.80
Dimension Width (mm) 107.00
Dimension Height (mm) 231.00
Dimension Depth (mm) 186.00
Description
Variable frequency drive, Part group reference (e.g. DIL): DA1, Rated operational voltage: Ue = 500 V AC, 3-phase, 600 V AC, 3-phase, Output voltage with Ve: U2 = 500 V AC, 3-phase, 600 V AC, 3-phase, Mains voltage (50/60Hz): ULN = 500 (-10%) - 600 (+10%) V, Rated operational current At 150% overload: Ie = 2.1 A, Note: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50 °C, Note: Overload cycle for 60 s every 600 s, Assigned motor rating Note: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 500 V, 50 Hz, Assigned motor rating 150 % Overload: P = 0.75 kW, 150 % Overload: IM = 1.5 A, Assigned motor rating Note: at 525 V, 50 Hz, Assigned motor rating 150 % Overload: P = 1.1 kW, 150 % Overload: IM = 2 A, Assigned motor rating Note: at 550 - 600 V, 60 Hz, Assigned motor rating 150 % Overload: P = 1 HP, Assigned motor rating 150 % Overload: IM = 1.7 A, Degree of Protection: IP20/NEMA 0, Interface/field bus (built-in): OP-Bus (RS485)/Modbus RTU, CANopen®, Fieldbus connection (optional): Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP, EtherCAT, SmartWire-DT, Fitted with: Brake chopper, 7-digital display assembly, Additional PCB protection (coated board), Frame size: FS2, Standards: Specification for general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
