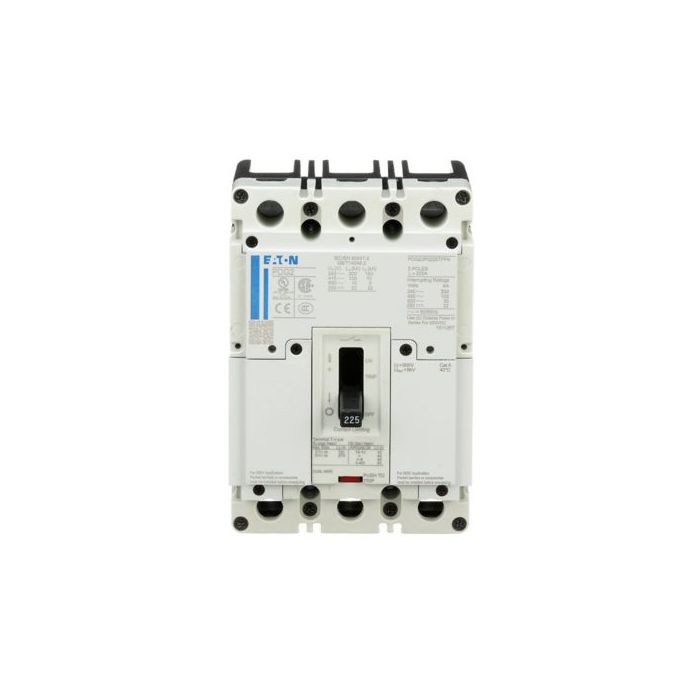

Eaton Power Defense molded case circuit breaker
Article No.:
PDG23M0200TFFL
Part No.:
PDG23M0200TFFL
Brand:
| Product Name |
Eaton Power Defense molded case circuit breaker
|
| Catalog Number |
PDG23M0200TFFL
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
RoHS Compliant
|
| Certifications |
IEC 60947-2 ,UL 489 ,CCC Marked, CSA
|
| Amperage Rating |
200 A
|
| Circuit breaker frame type |
Complete breaker
|
| Frame |
2
|
| Number of poles |
Three-pole
|
| Circuit breaker type |
PD2 Global
|
| Class |
Class A
|
| Trip Type |
T298
|
| Voltage rating |
600 Vac
|
| Terminals |
Standard Terminals Load Only
|
| Interrupt rating |
65 kAIC at 480 Vac
|
| Interrupt rating range |
65 kAIC @480V (UL)
100 kAIC @240V (UL) 30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC) 10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC) 70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 22 kAIC Icu @250 Vdc 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) 35 kAIC @600V (UL/CSA) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 22 kAIC Icu @125 Vdc |
Availability:
Forward delivery 5-7 weeks
