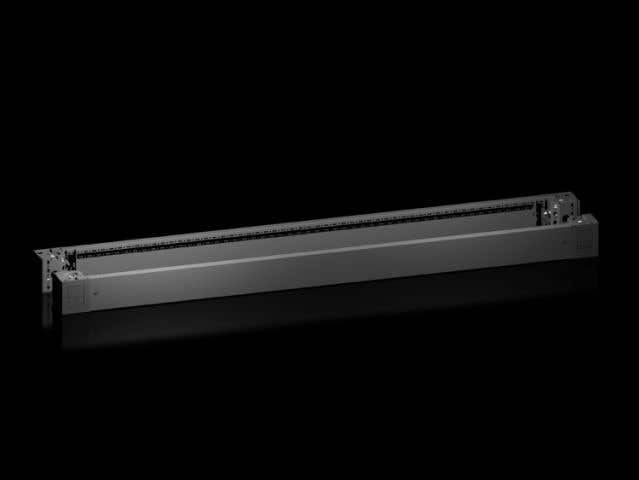

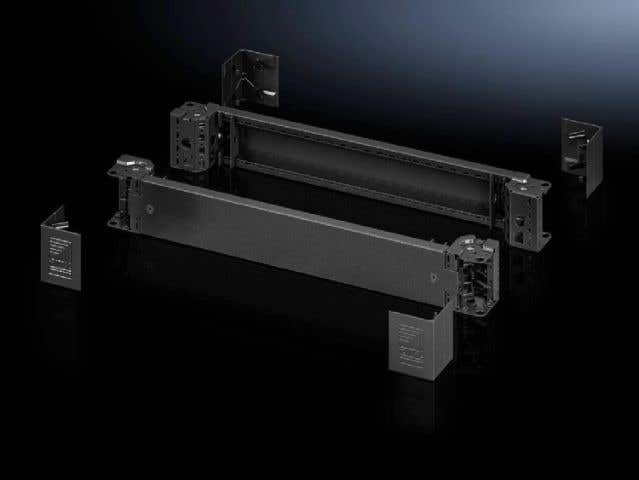

Base/plinth corner pieces with base/plinth trim panels, front and rear for base/plinth system VX, sheet steel
Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth.
Base/plinth corner pieces with trim panels for flexible cable entry.
BENEFITS
Reliable – Excellent stability of the base/plinth
Flexible – Countless interior installation options with VX accessories
Simple – Flush termination between the baying points
| Material & Color | Base/plinth corner piece: Sheet steel . Base/plinth trim panel front/rear: Sheet steel . Corner and baying cover: Plastic . Color RAL 9005 |
| Supply includes | 4 corner covers , Assembly parts of 4 base/plinth corner pieces, 200 mm high, 1 base/plinth trim panel, front/rear, 200 mm high , 2 base/plinth trim panels, front/rear, 100 mm high |
| To Fit | Enclosure's with width 1,000 mm and type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX |
| Type rating to UL 50E | Type 1 , Type 12 |
| Weight/pack | Net weight : 10.232 kg and Gross weight : 10.239 kg |
| PCF per pack (cradle-to-gate) | 38.9 kg CO2 eq (Cat B) . Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| ETIM 8 , 9 | EC000721 |
| ECLASS 8.0 | 27182003 |
