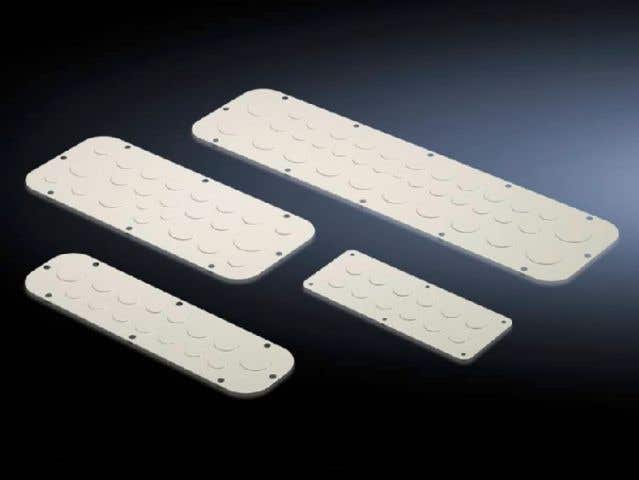

SZ Plastic gland plates, for AX, with membranes, WD: 301x221 mm, for gland plates size 5
Simply pierce the plastic with a sharp object, and pull through the cable.
The allocation of gland plate sizes is indicated on the relevant enclosures
| Material | Plastic to UL 94-V0 |
| Colour | Similar to RAL 7035 |
| Gland plate To fit | Size: 5 , Enclosure type: AX |
| No. of cable entries and Ø (mm) min.-max | 30 x 5-11 , 40 x 10-15, 5 x 15-25, 2 x 19-34 , 2 x 26-54, 1 x 50-110 |
| Weight | Net weight : 0.585 kg , Gross weight : 0.59 kg |
| ETIM 8, 9 | EC000211 |
| ECLASS 8.0 | 27142421 |
