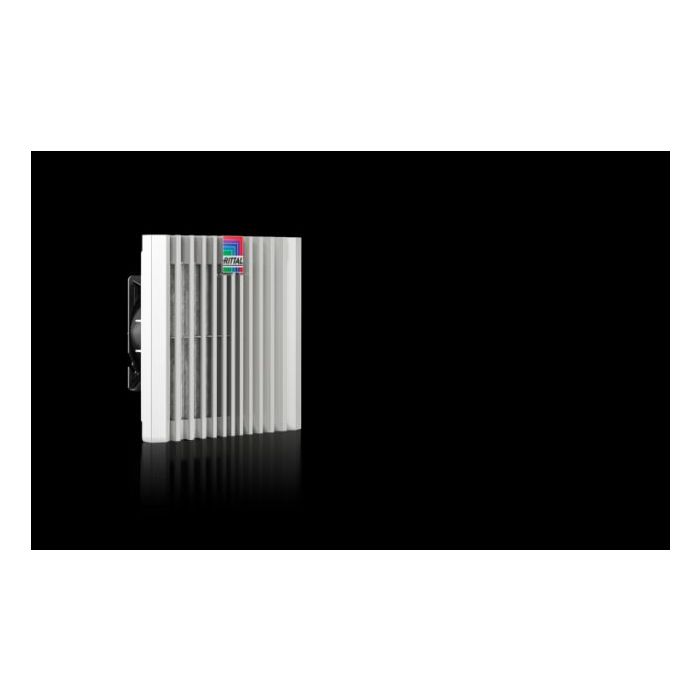

Blue e+ fan-and-filter unit EMC
Part No.:
3239824
Brand:
EMC fan-and-flter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Easy flter changes, thanks to a new opening mechanism on the louvred grille. Faster installation on the enclosure with optimised detent hooks . Diagonal fan technology achieves more even and constant ventilation of the enclosure, thanks to improved pressure stability .Tool-free assembly
Note :-
To improve energy efciency and extend the service life of the devices, we recommend the use of thermostats or temperature
displays
Features
| Design | Wall-mounted EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including EMC flter mat. |
| Fan | Axial, DC motor |
| Rated operating voltage | 24 V (DC) |
| Power consumption Pel | With DC: 5.7 kW |
| Rated current max. | With DC: 0.27 A |
| Installation depth | 84 mm |
| Protection category NEMA |
Type 12 with chopped-fbre flter Type 3, 3R, 4, 4X with chopped-fbre flter and hose-proof hood
|
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | With DC: 51 dB(A) |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
Availability:
Forward delivery 5-7 weeks
