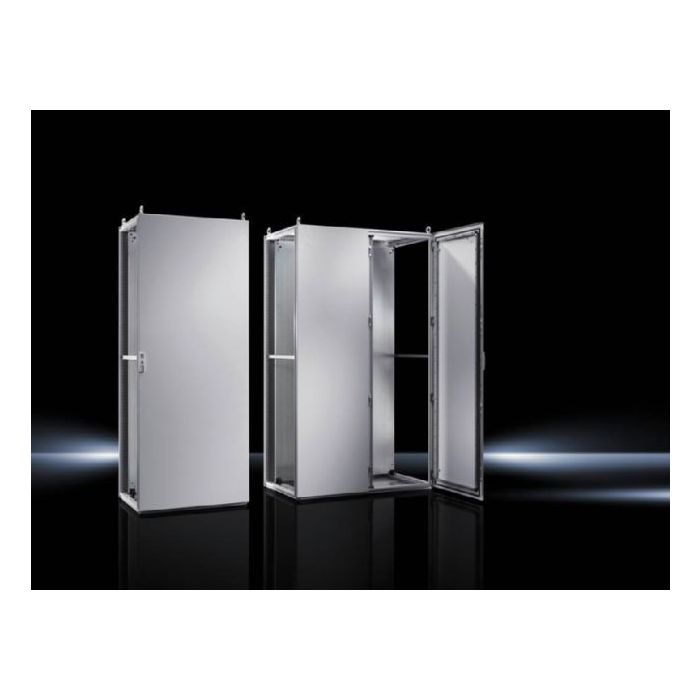

Baying systems TS 8
Part No.:
8485510
Brand:
Availability:
Forward delivery 5-7 weeks
| Part No. | 8485510 |
|---|---|
| UOM | EA |
| Packaging Unit | EA |
| Material | Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Door: Sheet steel, 2.0 mm Rear panel: Sheet steel, 1.5 mm |
| Protection category IP ACC IEC 60529 | IP 55 in conjunction with side panels and gland plates |
| Protection category NEMA | NEMA 12 in conjunction with side panels and gland plates |
| Scope of delivery | Enclosure frame Door(s) R/h door hinge with single-door enclosures, may be swapped to opposite side Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit |
| Weight (KG) | 49.20 |
|---|---|
| Dimension Width (mm) | 400.00 |
| Dimension Height (mm) | 1,800.00 |
| Dimension Depth (mm) | 500.00 |
Description
TS Bayed enclosure system, WHD: 400x1800x500 mm, Sheet steel, without mounting plate, single door at the front
