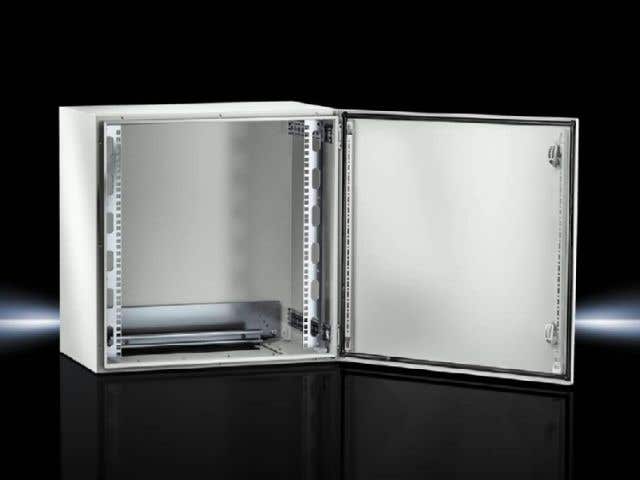

The delivery concept behind the three-part AX wall-mounted enclosures reduces complexity and enhances flexibility. The AX/VX modular system makes these enclosures suitable for a range of applications. The three-part structure ensures easy access.
| Feature | Details |
|---|---|
| Part Number | 2260955 |
| Design | Wall-mounted enclosures IT |
| Surface finish | Powder-coated |
| IK Code | IK08 |
| Number of locks | 1 |
| Product description | AX Compact enclosure, WHD: 760x760x300 mm, stainless steel 1.4301, with mounting plate, single-door, with two cam locks |
| Type rating to UL 50E | Type 1 , Type 3R , Type 4 , Type 4X , Type 12 |
| Basic Material | Stainless steel 1.4301 (AISI 304) |
| Material | Enclosure: Stainless steel , Door: Stainless steel, all-round foamed-in PU seal , Mounting plate: Sheet steel , Stainless steel 1.4301 (AISI 304) . Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm & Mounting plate: Zinc-plated . |
| Protection category NEMA | NEMA 1 , NEMA 3R , NEMA 4, NEMA 4X , NEMA 12 |
| ECLASS 8.0 | 27180101 |
|
|
